Varenummer:
MK-15115
Mobil Antenne Triton V 27 Mhz - T 27 5/8 F 0 db 5/8
Beskrivelse
Mobil Antenne Triton V 27 Mhz - T 27 5/8 F 0 db 5/8

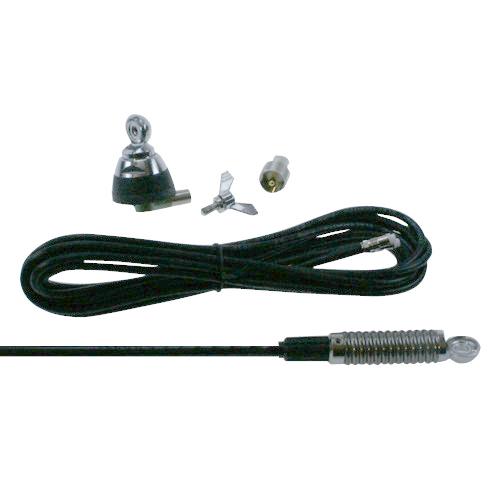

T27 5/8 T27 5/8 - Antennen leveres med SL fod, vingebolt,
4 M. FME kabel samt PL/UHF adapter
- Sættet består af følgende vare nummer: 15111, 13590, 11057, 25954 og 40060.
Features:
. CB Mobile antenna
. Tunable acting on the whip lenght
. 17/7 PH tapered stainless steel whip
. 180° inclination and adjustable whip, detachable for car-wash
. Suitable for magnetic mount
Electrical Data
. Type: Logarithmic loaded
. Frequency range: 26.9-27.5 MHz
. Impedance: 50 ohm unbalanced
. Radiation (H-plane): 360° omnidirectional
. Polarization: vertical
. Bandwidth at S.W.R. 2:1: 700 KHz
. S.W.R. at res. freq.: < 1.2:1
. Max. power:
20 Watts (CW) continuous
100 Watts (CW) short time
. Mounting: hole Ø 12.5 mm
. Cable lenght / Type: 4 m / RG 58
Mechanical Data
. Materials: Brass, Nylon, Stainless Steel
. Height (approx.):620 mm
. Weight (approx.): 400 gr
