Base 430-450 MHz 3dB ( N ) AC Antenna

Base 430-450 MHz 3dB ( N ) AC Antenna
Pris ved 1 Stk
DKK
1.715,00
Varenummer
1808-AC

Leveringstid
1-5 dage

Levering
Fra 55 DKK

Returret
14 dages returret

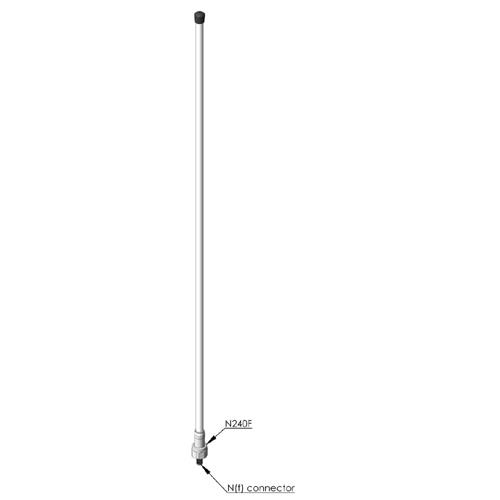

CXU3-1 - Marine and Land Based UHF Antenna

CXU3-1 is an omnidirectional antenna. The antenna is for use with radio telephone, two-way business radio and many other UHF applications. CXU3-1 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of brass.

CXU3-1 has been sold worldwide for more than four decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Dansk fremstillet - kvalitets antenne.

Electrical specifications:
Frequency range (MHz) 430.0-450.0
Nominal impedance (ohm) 50
VHF power rating (Watt). 100
Gain (dBd/Marine dB) 3/6
VSWR < 1.5:1
Polarization Vertical
Connector N-female
DC-shorted Yes

Mechanical specifications:
Length (m/ft) 1.44/4.7
Weight (kg/lbs) 0.7/1.5
Wind rating (m/s / mph) 45/101
Material Fibreglass Colour White polyurethane lacquer
Temperature range (°C/°F) -55 to +60 / -67 to +140
Ingress Protection IP66

Download Data
