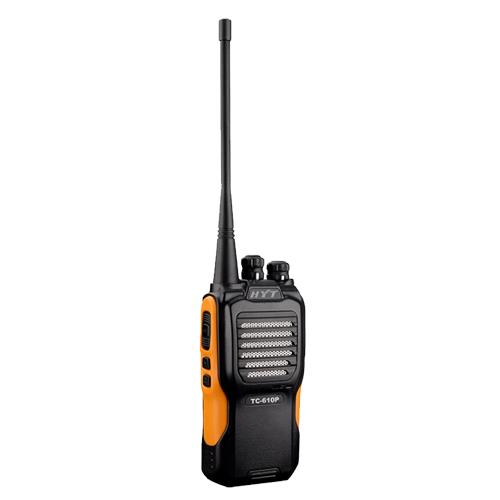

HYT TC-610P

Monitor function
CTCSS/CDCSS and hum and noise
VOX
Channel scan
Energy saving mode
Warning tone for low battery charge state
Busy channel lockout
Time-out timer (TOT)
Programmable via PC
Line-connected "cloning" function for transferring settings to another two-way radio
Selectable squelch levels
Vibration alarm

General data
Frequency range UHF: 440 - 470 MHz
Number of channels 16
Channel spacing 12.5 / 25 kHz or 20 / 25 kHz
Operating voltage 7.4 V
Standard battery 2000 mAh (lithium-ion battery) approx. 14 hours
Frequency stability ± 2.5 ppm
Operating temperature range -20 °C to +55°C
Antenna impedance 50 Ω
Dimensions (H × B × T) 119 x 55 x 33 mm (with standard battery, without antenna)
Weight (antenna and battery) 275 g
Shock and vibration resistance MIL-STD 810 C/D/E/F
Protection against dust and moisture IP66

Transmitter
Transmitting power UHF: 2 / 5 W
Modulation 16K0F3E / 8K0F3E
Interfering signals and harmonics -30 dBm (> 1 GHz)
Hum and noise 35/40 dB
Audio distortion ≤ 5 %

Receiver
Sensitivity 0.25 / 0.28 μV
Adjacent channel selectivity ≥ 60/70 dB
Intermodulation ≥ 65 dB
Spurious response rejection ≥ 70 dB
Hum and noise 40/45 dB
Nominal audio power output 800 mW
Audio distortion ≤ 5 %
