NEXUS TP-120

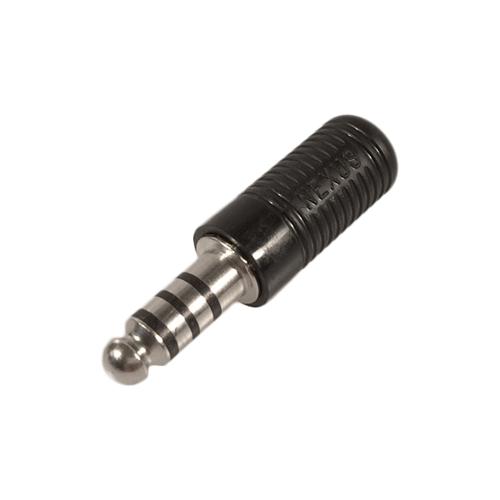

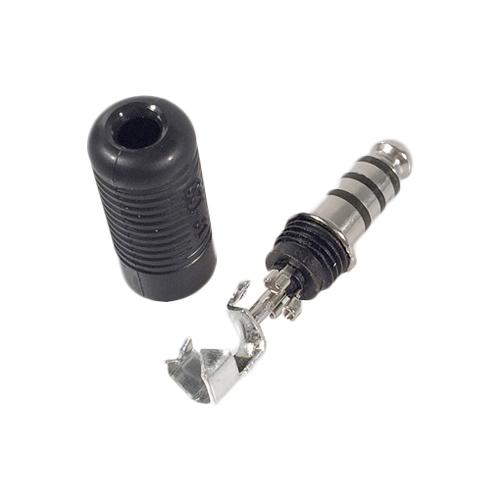

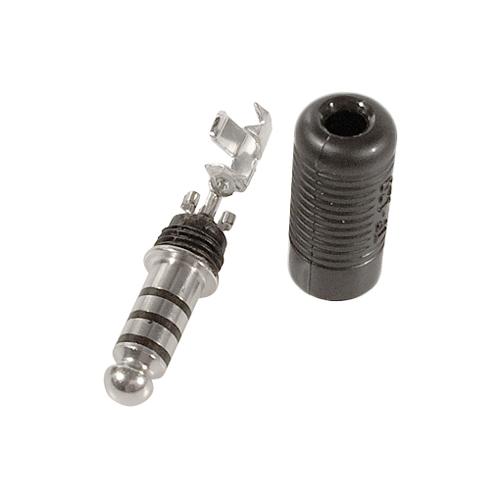

Jack male - Amphenol NEXUS TP-120 - 7,1mm

Specifications:
Application : Ruggedized Commercial / Military
Conductors : 4
Overall Diameter : .500 in
Overall Length : 1.906 in
Contact Diameter : .281 in
Contact Length : .761 in
Shell Material : Plastic
Contact Material : Nickel Plated Brass
Body Material : Plastic
Solder Contact Terminals : Pre-tinned over Nickel Plating
Contact Resistance : < .02 O
Insulation Resistance : > 1,000 mO
Dielectric Withstanding Voltage (RMS) : > 500 V
Insertion Force Maximum : 13 lb
Withdrawal Force : 6 to 10 lb
