Base 156-162,5 MHz 3dB (UHF) SCAN Antenna

Base 156-162,5 MHz 3dB (UHF) SCAN Antenna
  • Pris ved 1 Stk
    DKK
    1.315,00
    Varenummer
    12701

    Leveringstid
    1-5 dage

    Levering
    Fra 55 DKK

    Returret
    14 dages returret


    VHF76 - 6 dB VHF Fibreglass Antenna 2.6 m

    •High quality 6 dB VHF antenna for professional use
    •Matching design available for the AIS and AM/FM bands
    •Full 1/2 λ dipole antenna design

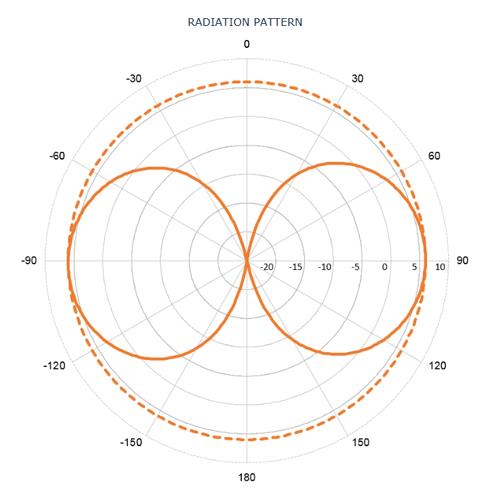

    •Full omni-directional radiation pattern
    •No groundplane needed

    Electrical Specifications:
    Frequency 156 - 162.5 MHz (International maritime VHF-band)
    Bandwidth 6,5 MHz
    Impedance 50 ohm
    VSWR < 1.5:1
    Polarisation Vertical
    Gain 6 dB (Marine), 3 dBd, 5.1 dBi
    Max. Input Power 150 W
    Antistatic Protection Direct Ground


    Mechanical Specifications:
    Color White and chrome

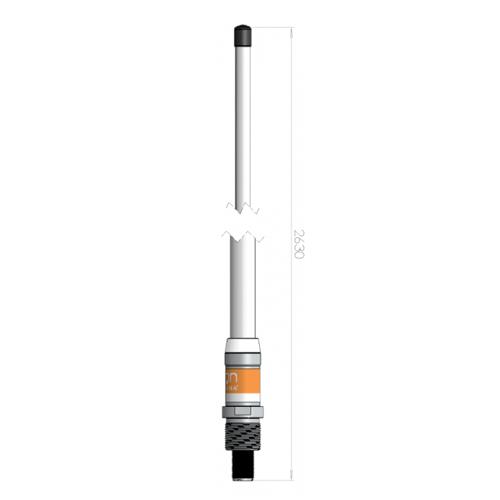

    Height Approx. 2640 mm
    Weight 900 g
    Mounting On 1" threaded pole (G1"-11 thread) with Revolving Nut Kit or on optionally brackets
    Mounting place On mast or deck
    Materials PU-painted glassfibre, copper, PTFE, PE and chrome plated solid brass
    Survival Wind Speed 55 m/s (125 mph)
    Operating temperature -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
    Connector UHF-female
    Cable No cable supplied
    Ingress Protection IP66
    Vibration IEC 60068-2-6, IEC 60068-2-64
    Serial no. On product label

    Download Data
