CXL VHF/GSM ( N ) Procom Incl omløber

CXL VHF/GSM ( N ) Procom Incl omløber
Pris ved 1 Stk
DKK
1.298,00
Varenummer
12901

Leveringstid
1-5 dage

Levering
Fra 75 DKK

Returret
14 dages returret

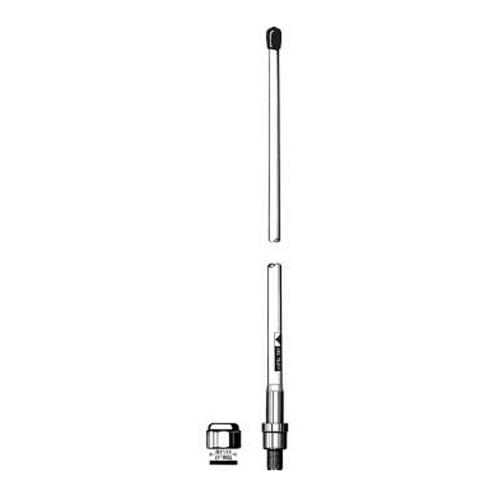

CXL-VHF/GSM Procom Antenne

155 til 162 MHz (VHF) og 890 til 960 MHz (GSM og NMT-900) med 0 dBd gain på begge bands.
Den eksisterende antenne kan nemt udskiftes og det eksisterende kablet kan genbruges.

2-Band Marine Antenna Covering Marine VHF and 900
MHz Cellular (GSM, NMT-900)

Specifications Electrical
Model CXL VHF/GSM
Frequency Marine VHF: 155 - 162 MHz / GSM/NMT: 890 - 960 MHz
Antenna Type Dual-frequency coaxial antenna
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain Marine VHF: 2 dBi 0 dBd
GSM/NMT: 2 dBi 0 dBd
ANTISTATIC PROTECTION All metal parts DC-grounded (Shows a DC-short at the connector)

MECHANICAL
TEMP. RANGE -30°C → +70°C
MATERIALS Shroud: Polyurethane coated glass fibre
Mounting bracket: Chromed brass
CONNECTOR N-female
WIND SURFACE Approx. 0.0013 m²
WIND LOAD Approx. 15 N @ 150 km/h
COLOUR Marine white
TOTAL HEIGHT Approx. 1.1 m
DIA. IN TOP END 8 mm
DIA. IN BOTTOM END 16 mm
WEIGHT Approx. 400 g
MOUNTING On 1” RG (G1”-11) threaded pipe or on optional
mounting brackets (see below).
Revolving nut enclosed

Download Data
